John Deere Billet Aluminum Head Package
State of the art cylinder head for tractor pulling. This revolutionary billet cylinder head has had a big impact on the Light Weight Super Stock pulling class.
Customers Include: Randy Payne (Guess Work), Kurt Kesler, Rusty Clifton, Scott Holtgrew (VooDoo Deere), Shawn Weins (#1 and #2).
Availability: Next batch in production – expected completion March 2015
State of the art cylinder head for tractor pulling.
Performance
Years of research has produced high airflow combined with impressive wet flow for improved horsepower that shows up on the dyno.
Durability
Tired of valve train problems? Sophisticated valve train modeling and advanced geometry are two of the reasons why we have over 20 heads in use with valve train issues.

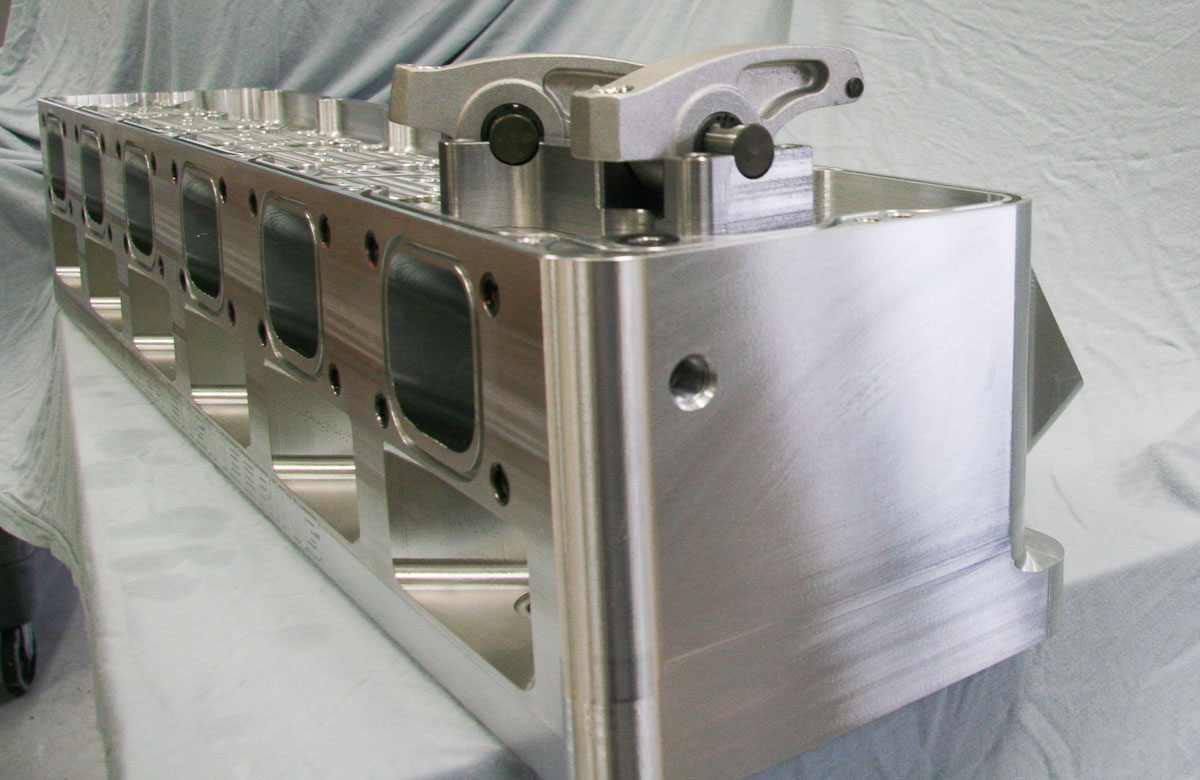

Each billet head is CNC machined from a solid piece of aircraft grade aluminum for the ultimate reliability, incredible performance and the lowest possible weight. Each cylinder head is sold in a kit which includes all of the items carefully designed to install the cylinder head on your block. This head package will put you in the winners circle!
Summary:
Airflow: over 500 cfm
Weight: 102 lbs
Down Nozzles: two per cylinder
Material: Billet (solid block) of Aircraft grade Aluminum
Oiling system: built in to the valve cover
Full Specifications:
- Port design by Dave Bamber – best airflow in pushrod tractor head to date at over 500 cfm. High airflow combined with wet flow testing and design has produced very impressive performance! Customers have been impressed with the performance over a wide rpm range and a wide range of fuel mixtures.
- Designed for maximum reliability, and light weight (102 lbs). The aluminum alloy and heat treat have been carefully selected for maximum heat transfer, strength, and crack resistance. In addition, the design has been optimized to eliminate hot spots which eventually lead to soft spots and/or cracking.
- Two fuel down nozzle connections are provided in the head for each cylinder. The location and orientation were carefully selected to optimize wet flow. Most intake manifolds are built with an additional port in each intake runner for the idle circuit.
- The oiling system built into the billet valve cover is simply connected by an o-ringed connection when the valve cover is bolted down! No need to disconnect / re-connect oil lines. In addition, the perimeter of the valve cover is sealed with an o-ring rather than a gasket. Similarly, the intake flanges are sealed to the cylinder head with o-rings.
The Head Package includes assembled cylinder head with top quality components (springs, retainers, titanium valves, etc.). The kit includes:
- head studs (stand deck height block)
- head gasket (annealed copper)
- billet rocker arms (with adjusters)
- billet rocker arm stands
- stainless steel intake flange/runners flow matched to ports
- exhaust flanges
- exhaust gaskets (annealed copper)
- billet valve cover / oiling system
- high quality fasteners
- NTPA required sparkplug shield
Optional Upgrades available:
- Stainless steel fire rings installed
- Valve cover polished
- Stainless steel intake manifold
- Stainless steel exhaust header
- Turnkey fuel system
